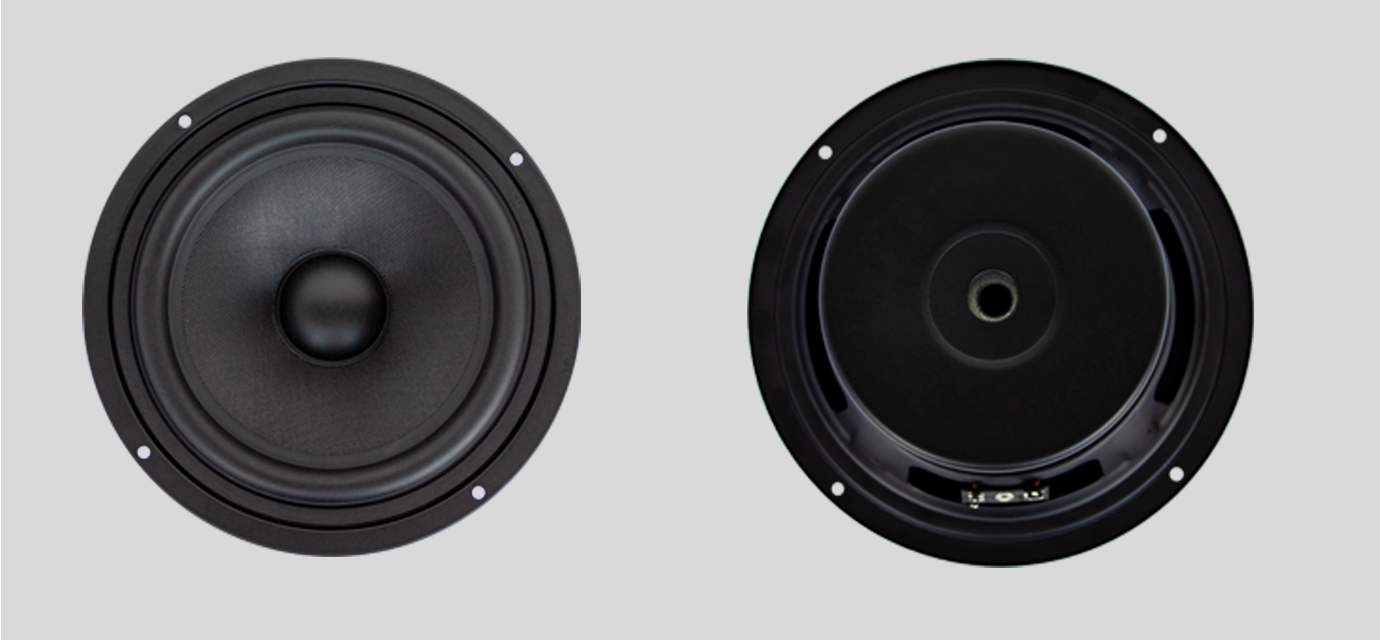

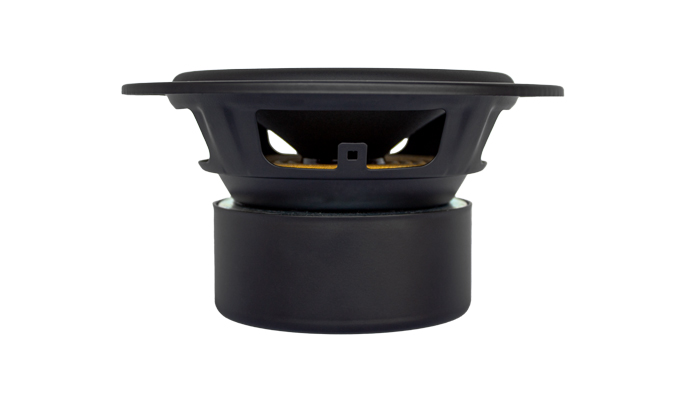

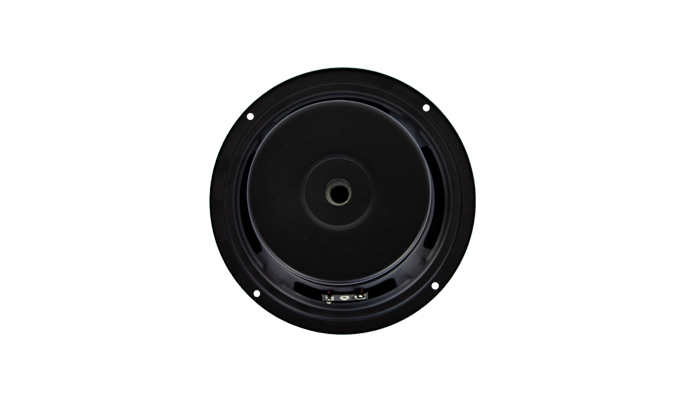

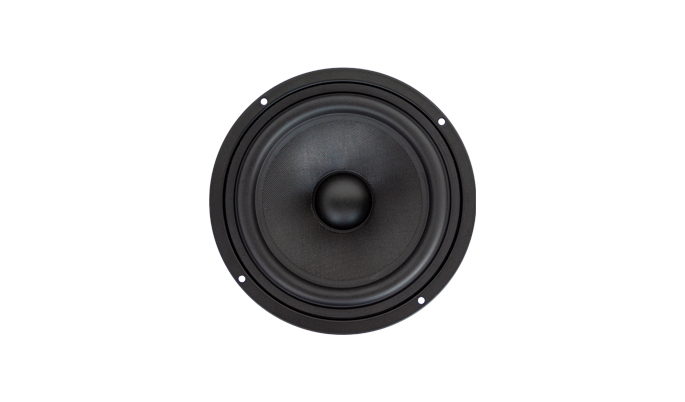

- 6寸全频喇叭
- 106.5铁氧体磁铁 双磁 防磁
- 25芯耐高温音圈 ASV铝骨架
- 高强度的反边铁盆架
- 橡胶悬边玻纤复合鼓纸
- 50Hz-6KHz 频响范围
- 87dB灵敏度
- 90W额定功率
- 适用于书架音箱、中置音箱、主音箱
喇叭扬声器
Aa1智泓 AW-425017

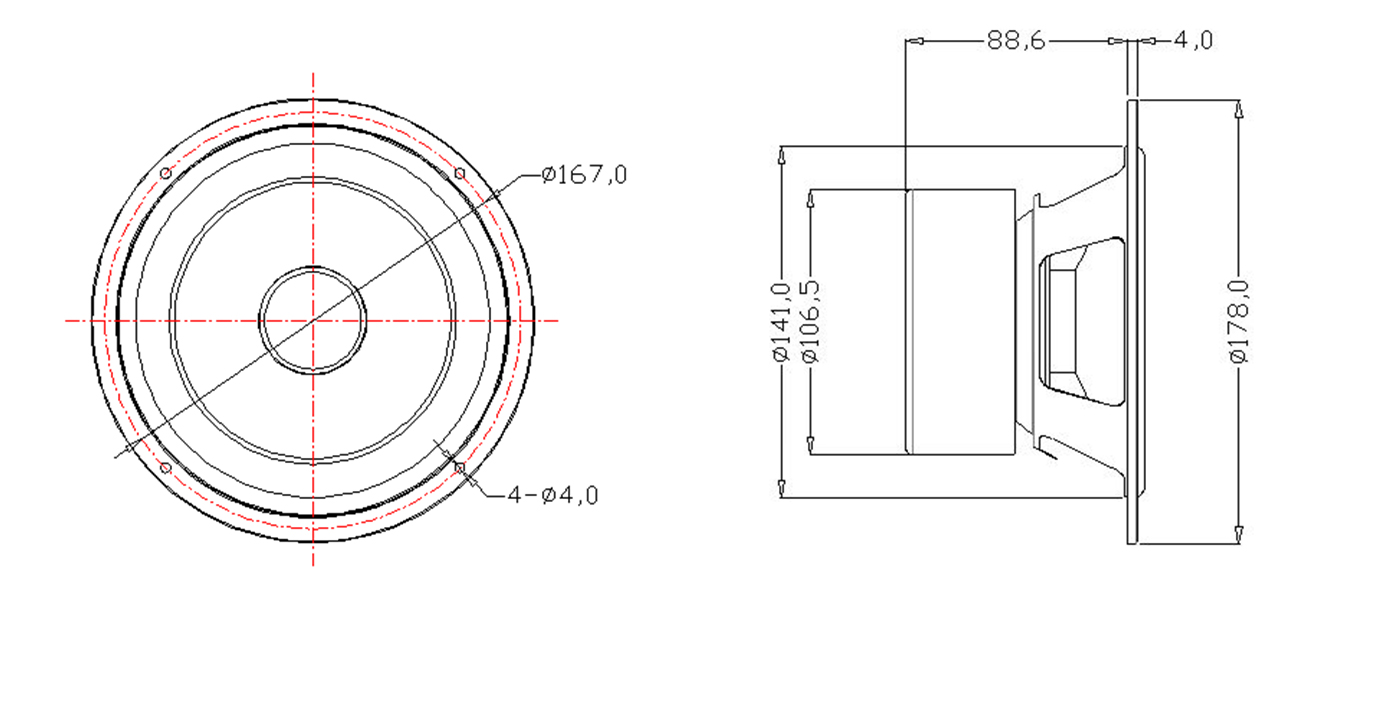

| Nominal diameter | 6 inch |
| Nominal impedance | 4Ω |
| Power rating | 15-90W |
| Sensitivity(1w\1m) | 87dB |

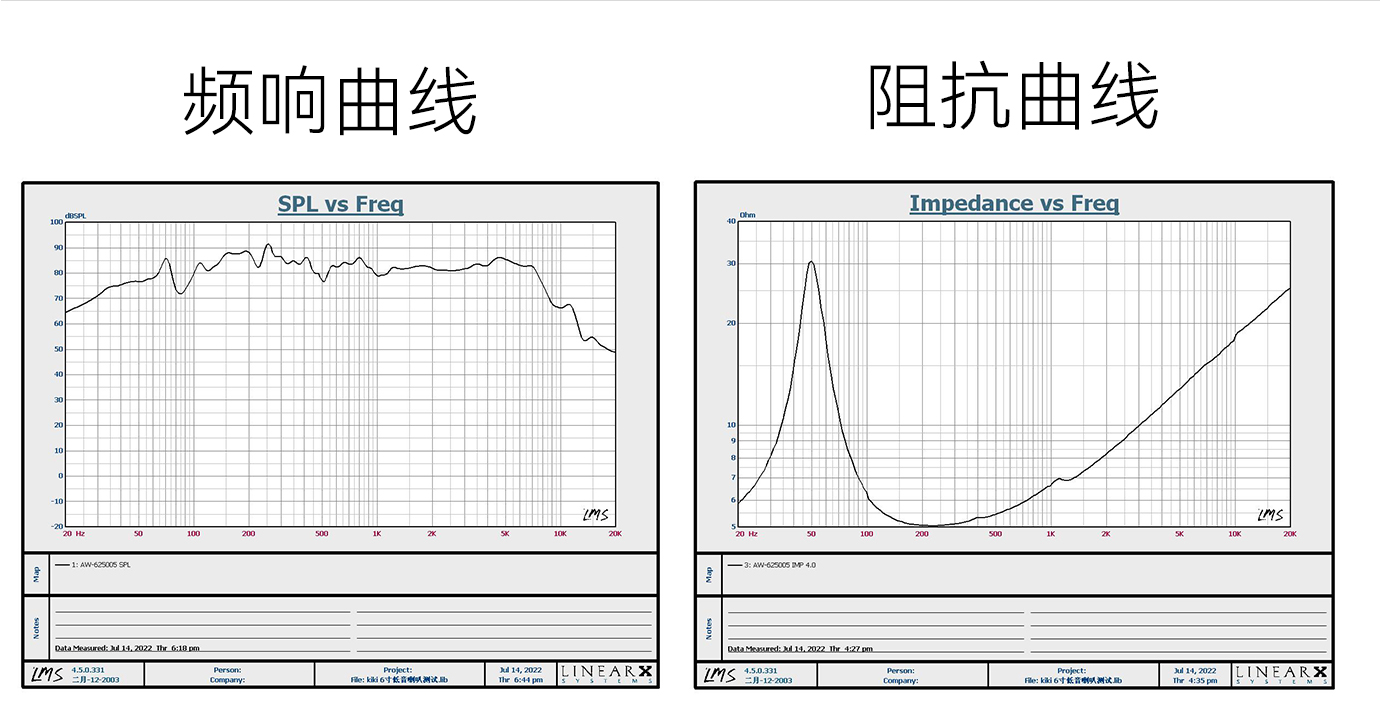

| Frequency range | 50Hz-6KHz |
| Voice coil diameter | Φ25 |
| Magnet dimension | 90*45*20 |
| Fs | 50.414 Hz |
| Re | 4.000 Ohm |
| Qms | 3.590 |
| Qes | 0.622 |
| Qts | 0.530 |
| Vas | 16.910 Ltr |
| Cms | 6.75.956u M/N |
| n.(%) | 0.337 % |
| Bl | 5.481 T |
| Sd | 13.273K mm |
