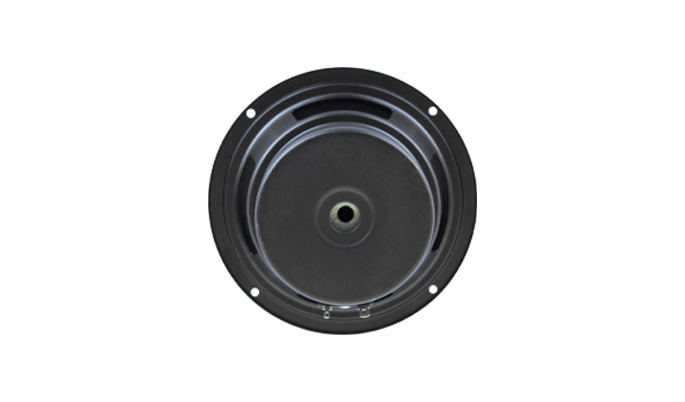

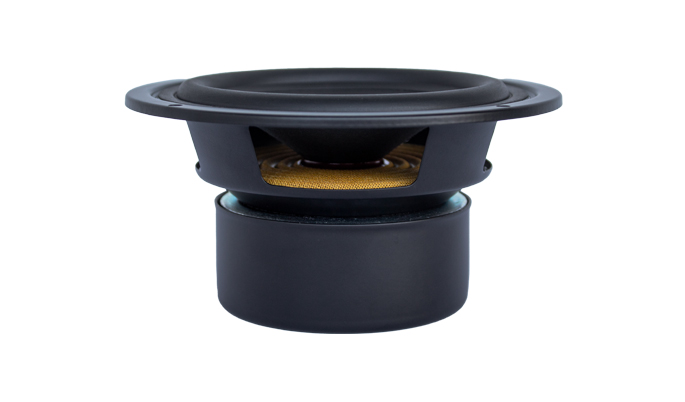

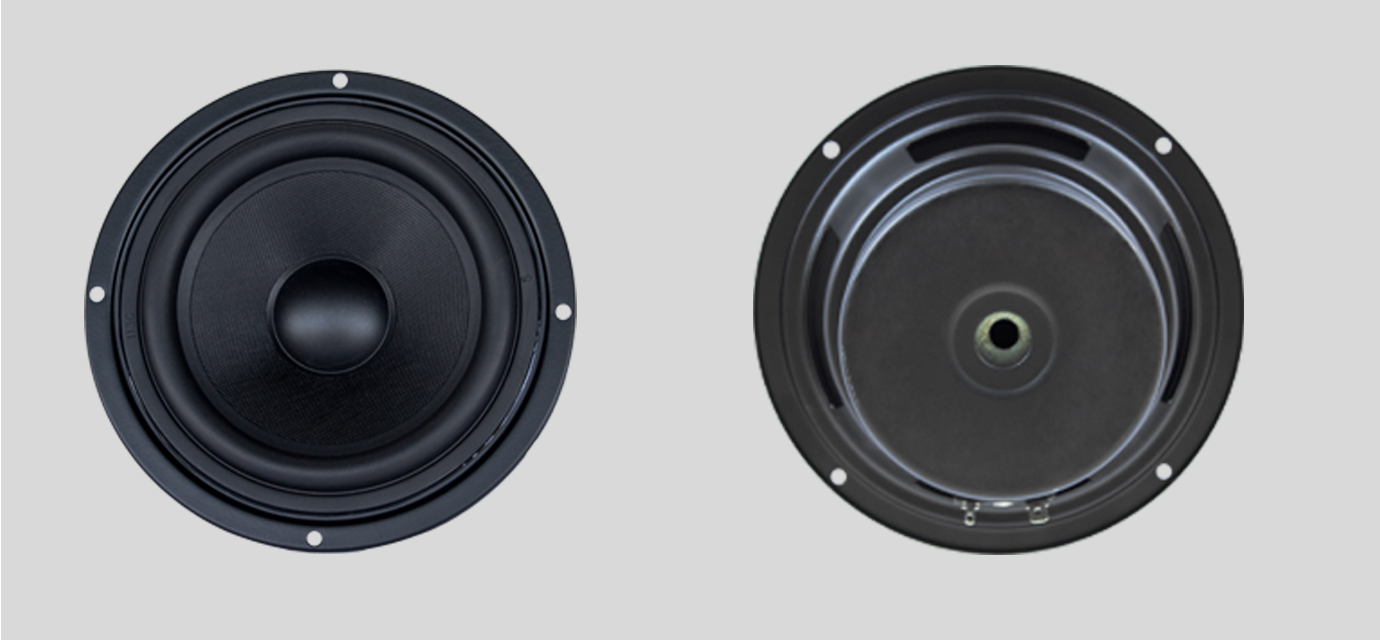

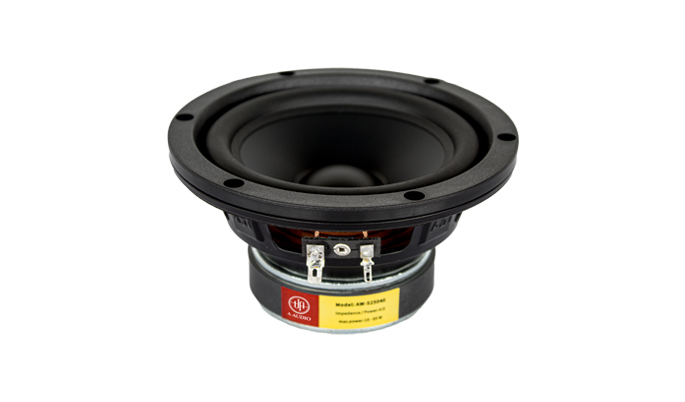

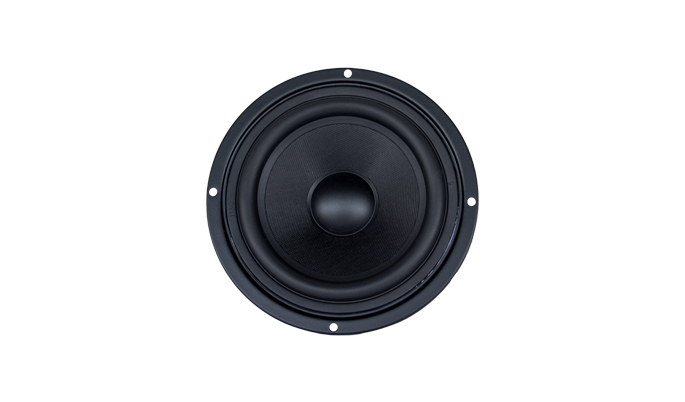

- 5寸全频喇叭
- 88铁氧体磁铁 双磁 防磁
- 25芯耐高温音圈 ASV骨架
- 高强度的反边铁盆架
- 橡胶悬边玻纤复合鼓纸 哑光纸正帽
- 65Hz-5KHz 频响范围
- 87dB灵敏度
- 70W额定功率
- 适用于书架音箱、中置音箱、主音箱
喇叭扬声器
Aa1智泓 AW-425017

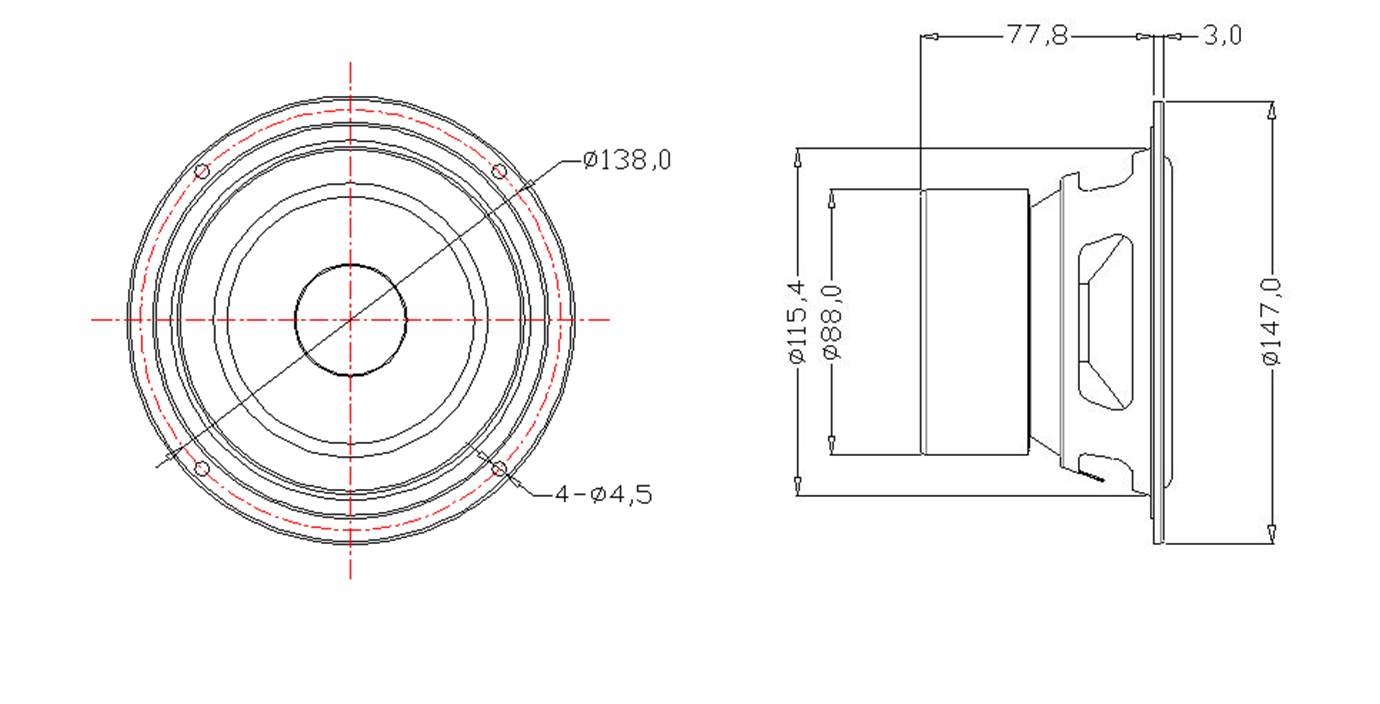

| Nominal diameter | 5 inch |
| Nominal impedance | 3.4Ω |
| Power rating | 10-70W |
| Sensitivity(1w\1m) | 87dB |

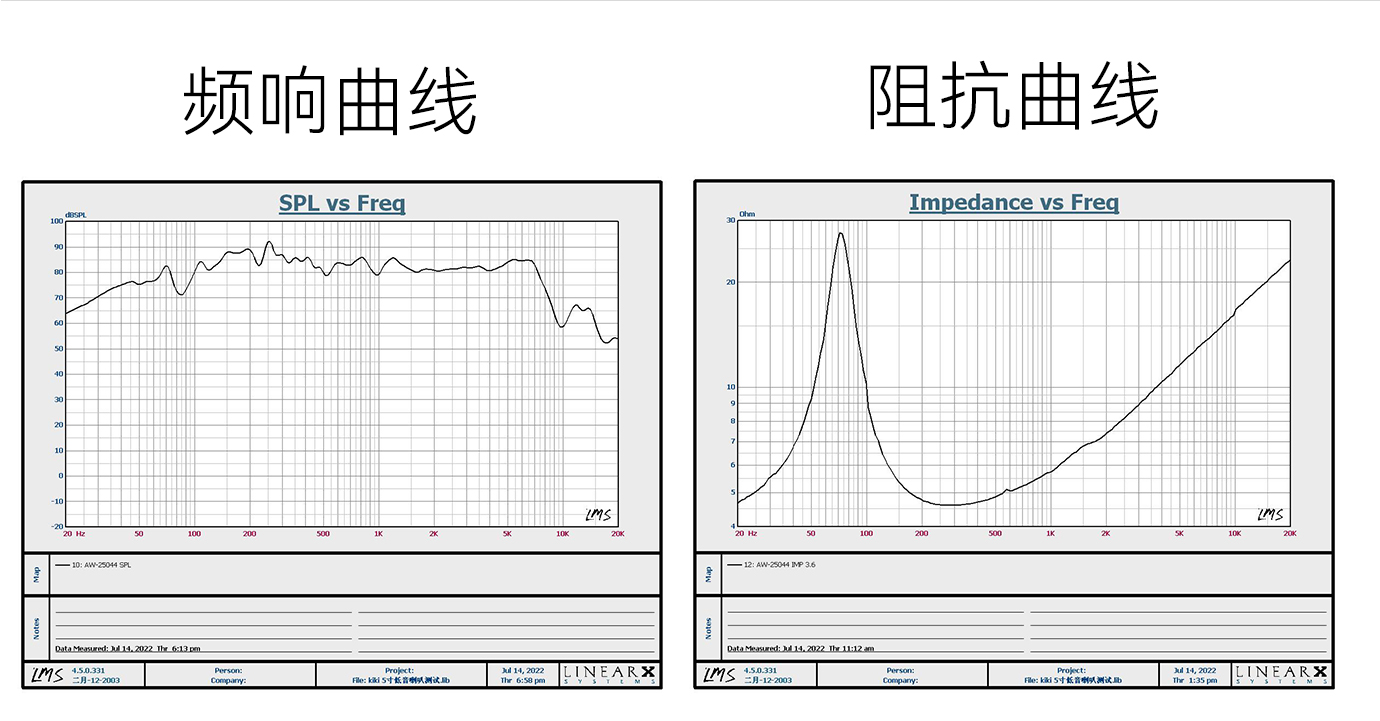

| Frequency range | 65Hz-5KHz |
| Voice coil diameter | Φ25 |
| Magnet dimension | 38.55*47*3.2 |
| Fs | 76.553 Hz |
| Re | 3.600 Ohm |
| Qms | 3.728 |
| Qes | 0.628 |
| Qts | 0.537 |
| Vas | 5.382 Ltr |
| Cms | 567.725u M/N |
| n.(%) | 0.317 % |
| Bl | 4.708 T |
| Sd | 8.171K mm |
