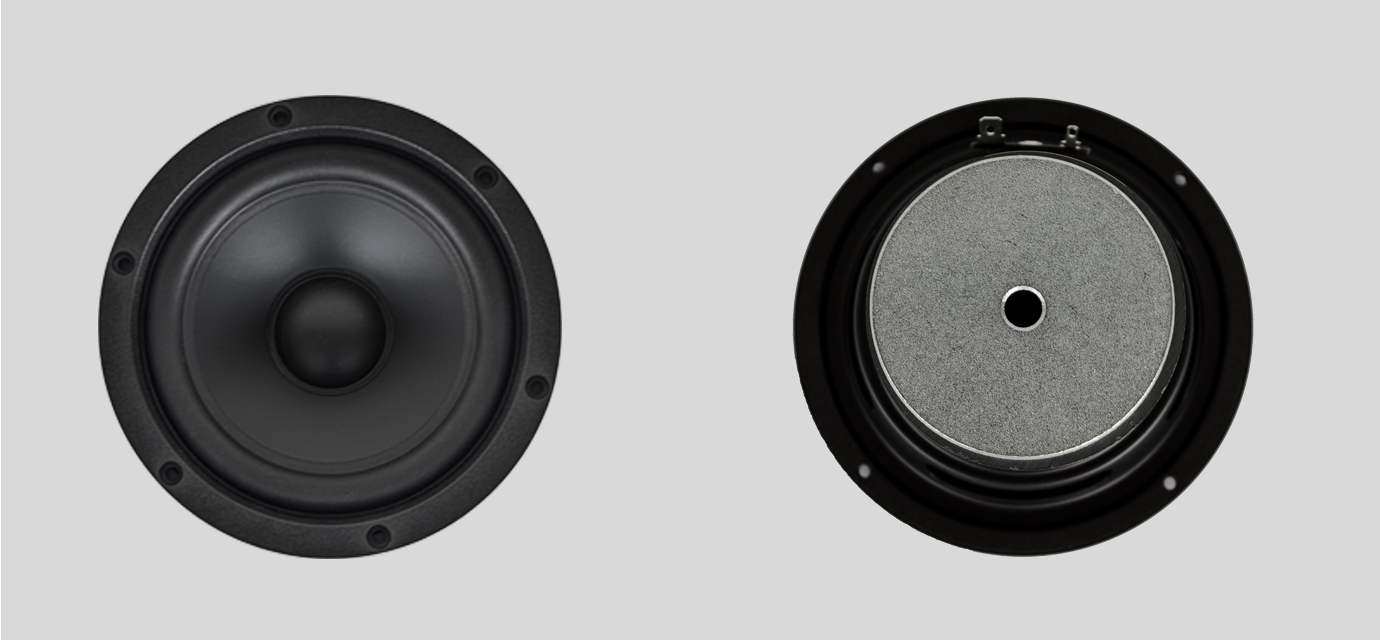

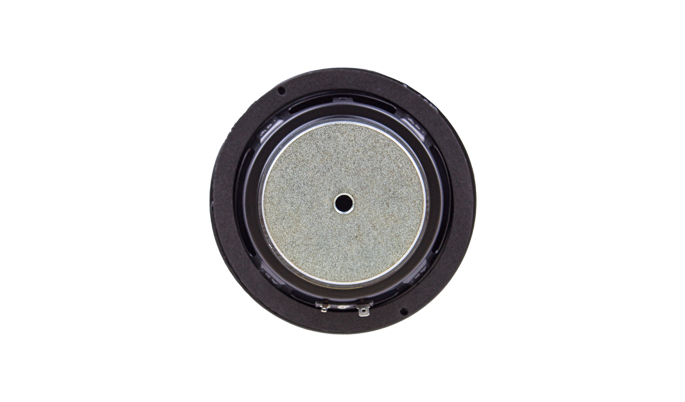

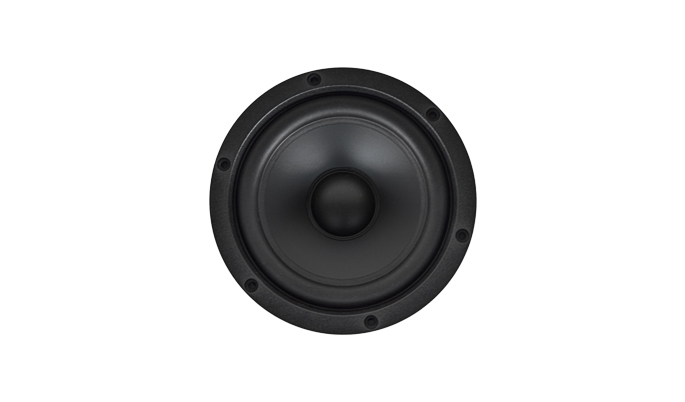

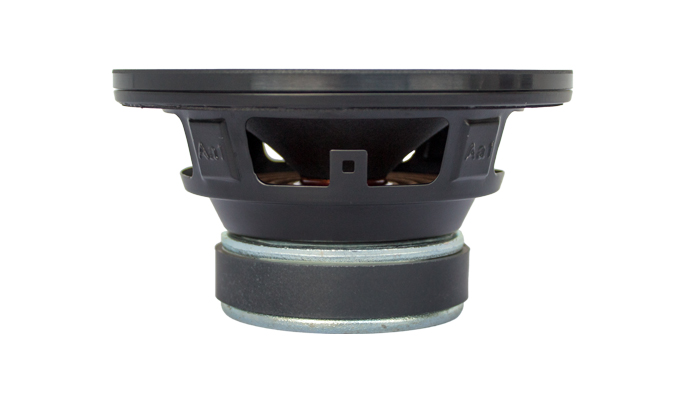

- 5寸全频喇叭
- 80铁氧体磁铁 双磁 防磁
- 25芯耐高温音圈 ASV铝骨架
- 高强度的反边铁盆架配塑料压圈
- 橡胶悬边哑光纸鼓纸 哑光纸正帽

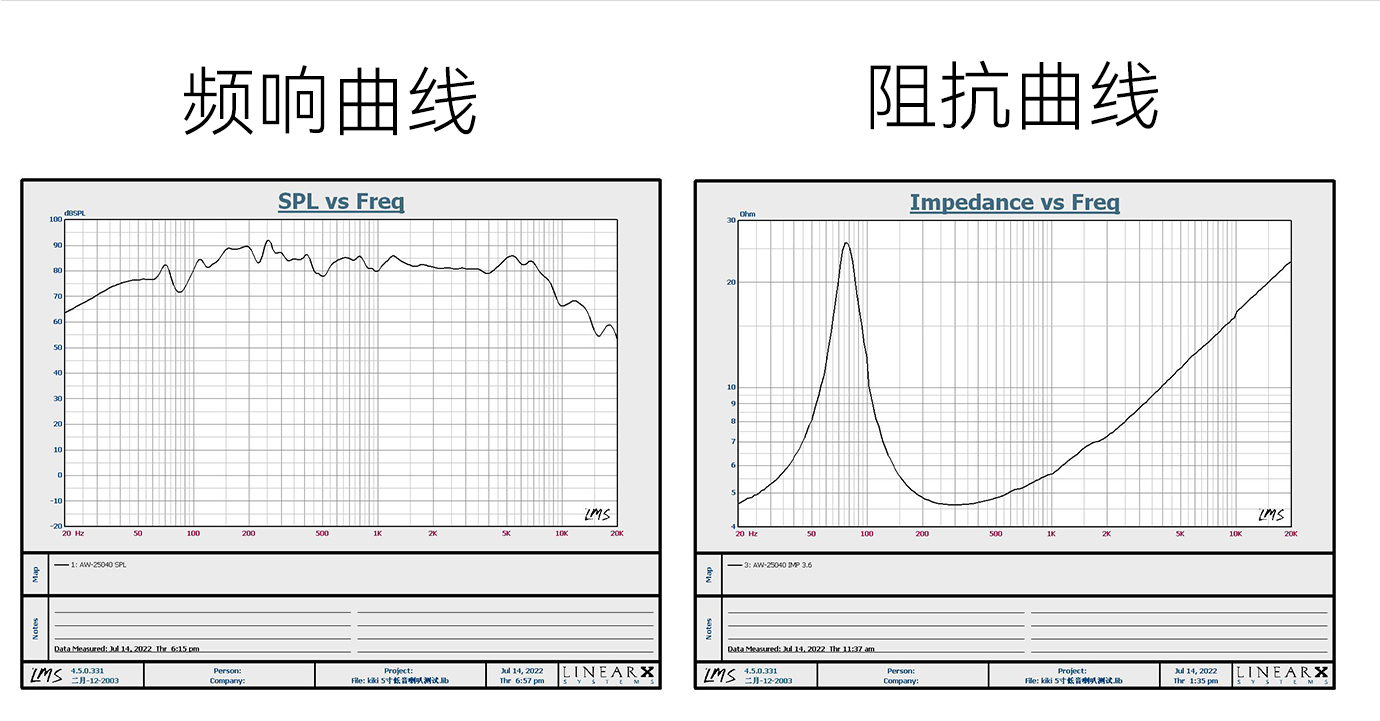

- 55Hz-6KHz 频响范围
- 87dB灵敏度
- 65W额定功率
- 适用于书架音箱、中置音箱、主音箱
喇叭扬声器
Aa1智泓 AW-425017
| Nominal diameter | 5 inch |
| Nominal impedance | 3.6Ω |
| Power rating | 10-65W |
| Sensitivity(1w\1m) | 87dB |
| Frequency range | 55Hz-6KHz |
| Voice coil diameter | Φ35 |
| Magnet dimension | 100*45*20 |
| Fs | 41.278 Hz |
| Re | 3.600 Ohm |
| Qms | 2.877 |
| Qes | 0.425 |
| Qts | 0.371 |
| Vas | 38.515 Ltr |
| Cms | 593.255u M/N |
| n.(%) | 0.616 % |
| Bl | 7.417 T |
| Sd | 21.382K mm |
