- 5寸全频喇叭
- 70铁氧体磁铁 双磁 防磁
- 25芯耐高温音圈 ASV骨架
- 高强度的反边铁盆架配塑料压圈
- 橡胶悬边灰色哑光PP鼓纸 灰色纸反帽

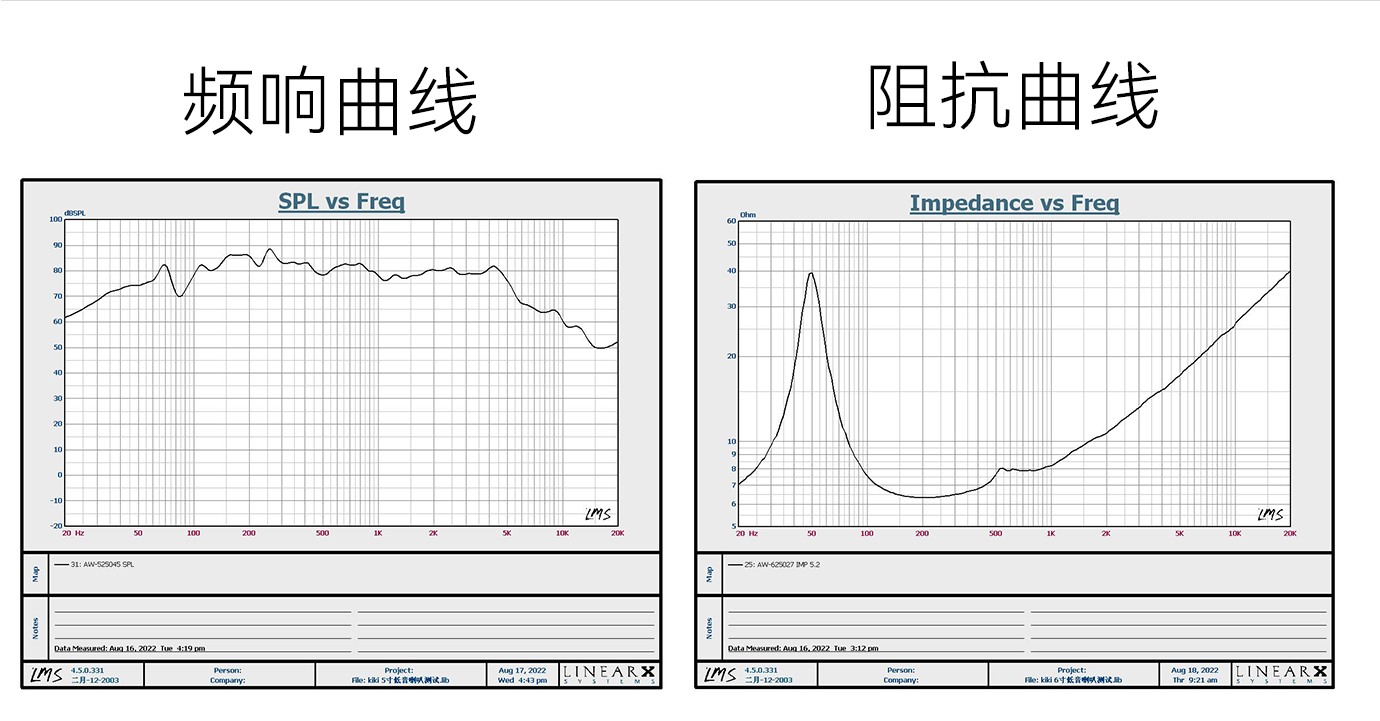

- 60Hz-4KHz 频响范围
- 90dB灵敏度
- 65W额定功率
- 适用于书架音箱、中置音箱、主音箱
喇叭扬声器
Aa1智泓 AW-425017

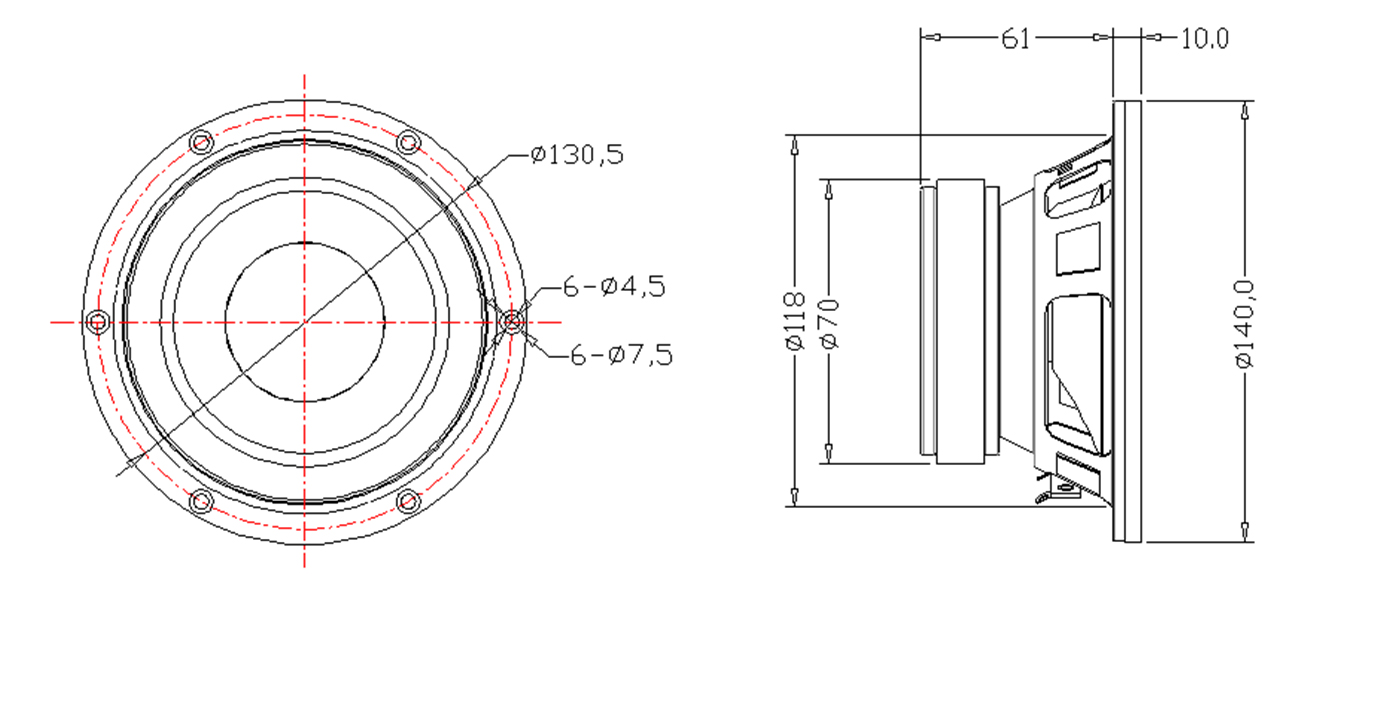

| Nominal diameter | 5 inch |
| Nominal impedance | 3.6Ω |
| Power rating | 10-65W |
| Sensitivity(1w\1m) | 90dB |
| Frequency range | 60Hz-4KHz |
| Voice coil diameter | Φ25 |
| Magnet dimension | 70*32*15 |
| Fs | 66.063 Hz |
| Re | 3.600 Ohm |
| Qms | 3.890 |
| Qes | 0.940 |
| Qts | 0.757 |
| Vas | 6.976 Ltr |
| Cms | 543.983u M/N |
| n.(%) | 0.207 % |
| Bl | 4.119 T |
| Sd | 9.503K mm |
