- 5寸全频喇叭
- 80铁氧体磁铁
- 25芯耐高温音圈 ASV铝骨架
- 高强度的铝盆架
- 橡胶悬边雾白铝鼓纸 雾白铝反帽

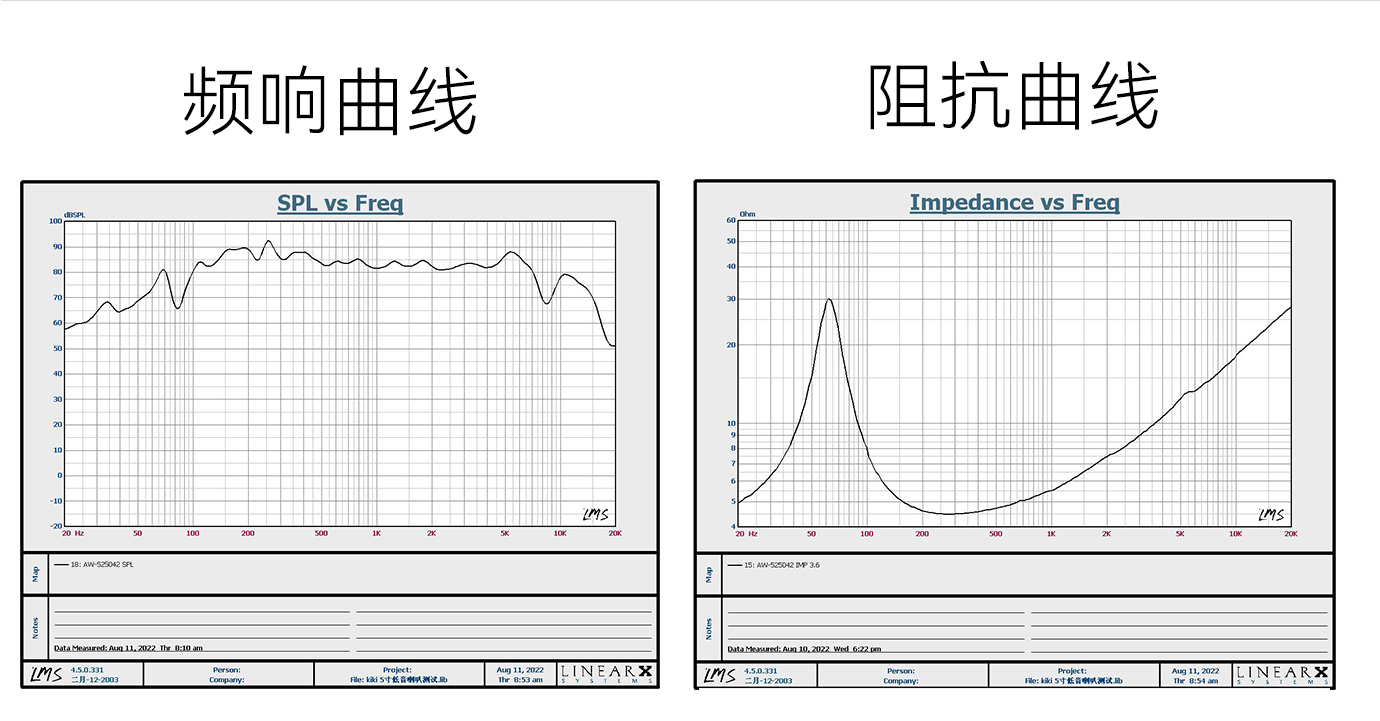

- 65Hz-6.5KHz 频响范围
- 87dB灵敏度
- 60W额定功率
- 适用于书架音箱、中置音箱、主音箱
喇叭扬声器

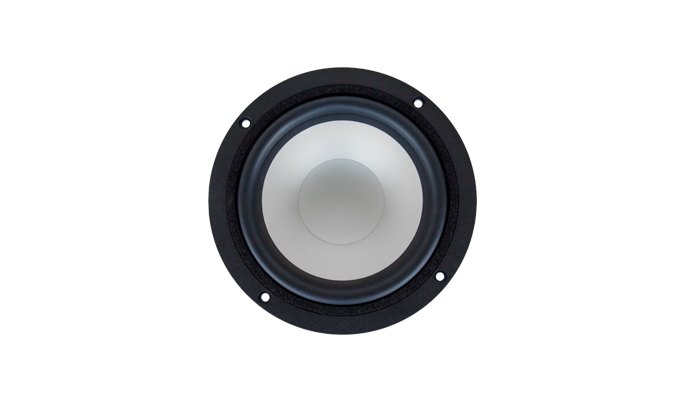

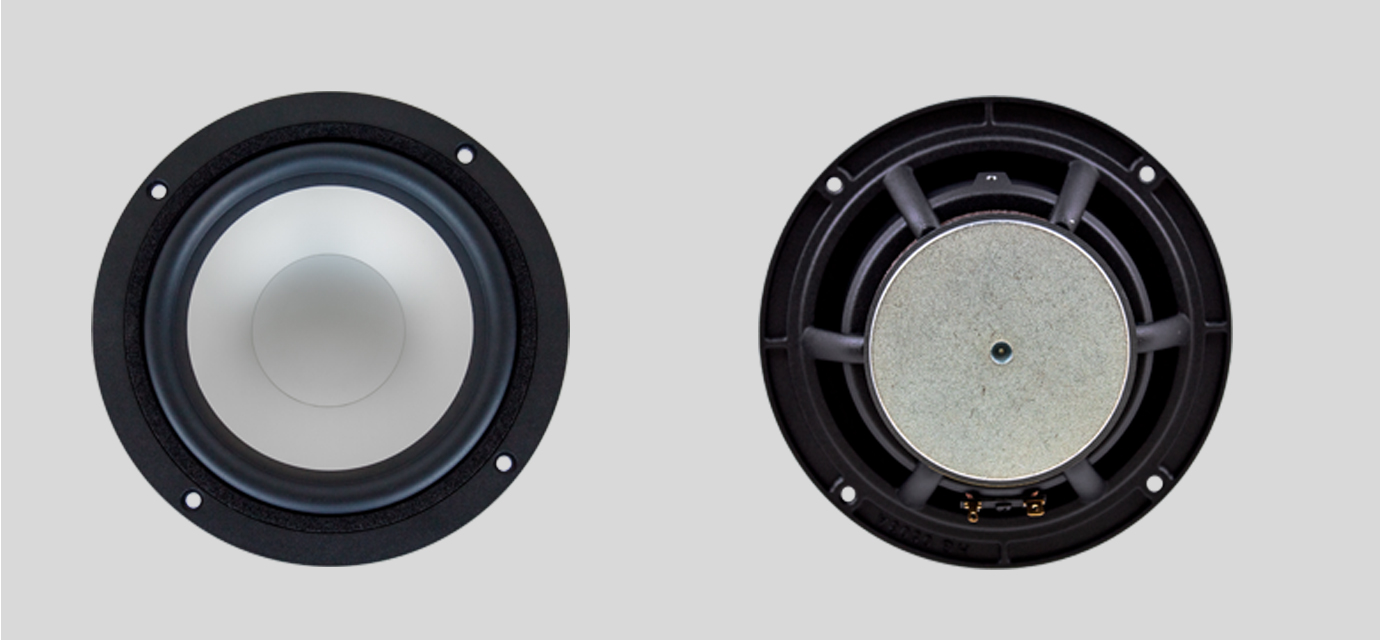

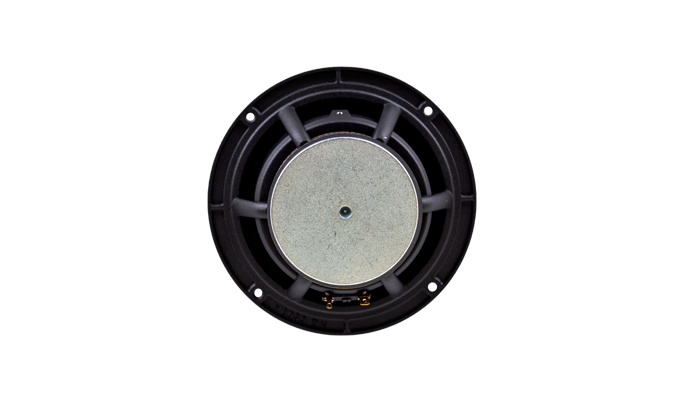

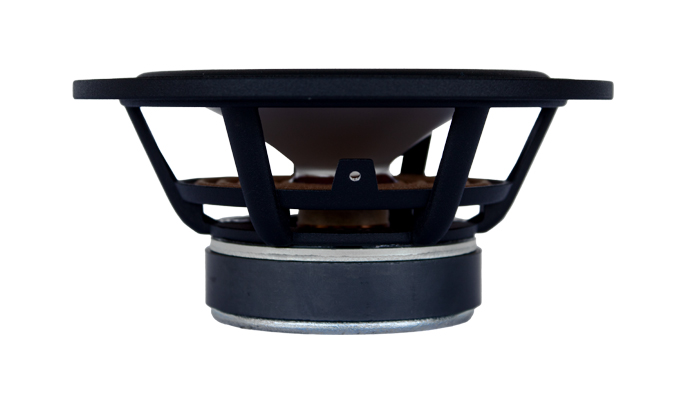

Aa1智泓 AW-425017

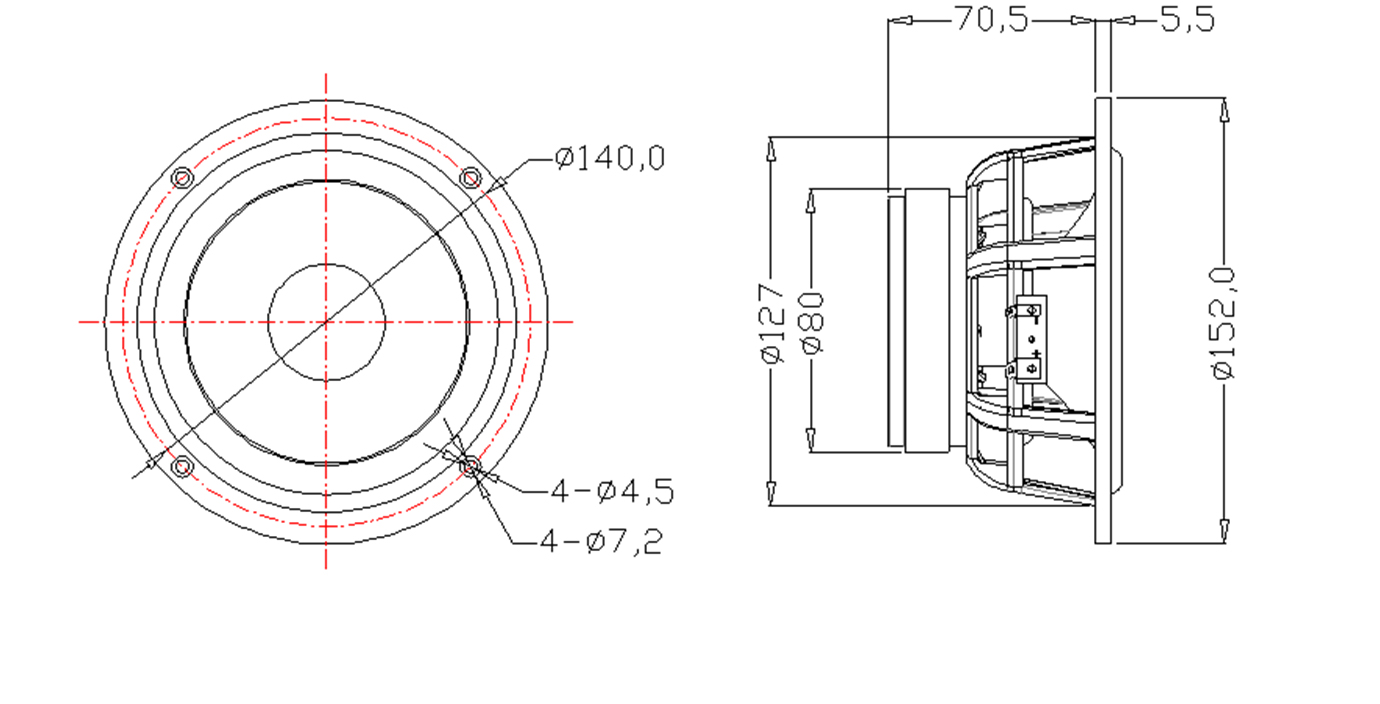

| Nominal diameter | 5 inch |
| Nominal impedance | 3.4Ω |
| Power rating | 15-60W |
| Sensitivity(1w\1m) | 87dB |
| Frequency range | 60Hz-6.5KHz |
| Voice coil diameter | Φ25 |
| Magnet dimension | 80*32*15 |
| Fs | 66.513 Hz |
| Re | 3.600 Ohm |
| Qms | 2.250 |
| Qes | 0.486 |
| Qts | 0.400 |
| Vas | 7.227 Ltr |
| Cms | 563.538u M/N |
| n.(%) | 0.400 % |
| Bl | 5.606 T |
| Sd | 9.503K mm |
