- 4寸全频喇叭
- 80铁氧体磁铁
- 25芯耐高温音圈 KSV骨架
- 高强度的铝盆架
- 橡胶悬边复合玻纤鼓纸 哑光PP反帽
- 70Hz-10KHz 频响范围
- 86dB灵敏度
- 50W额定功率
- 适用于书架音箱、中置音箱、主音箱
喇叭扬声器
Aa1智泓 AW-425017

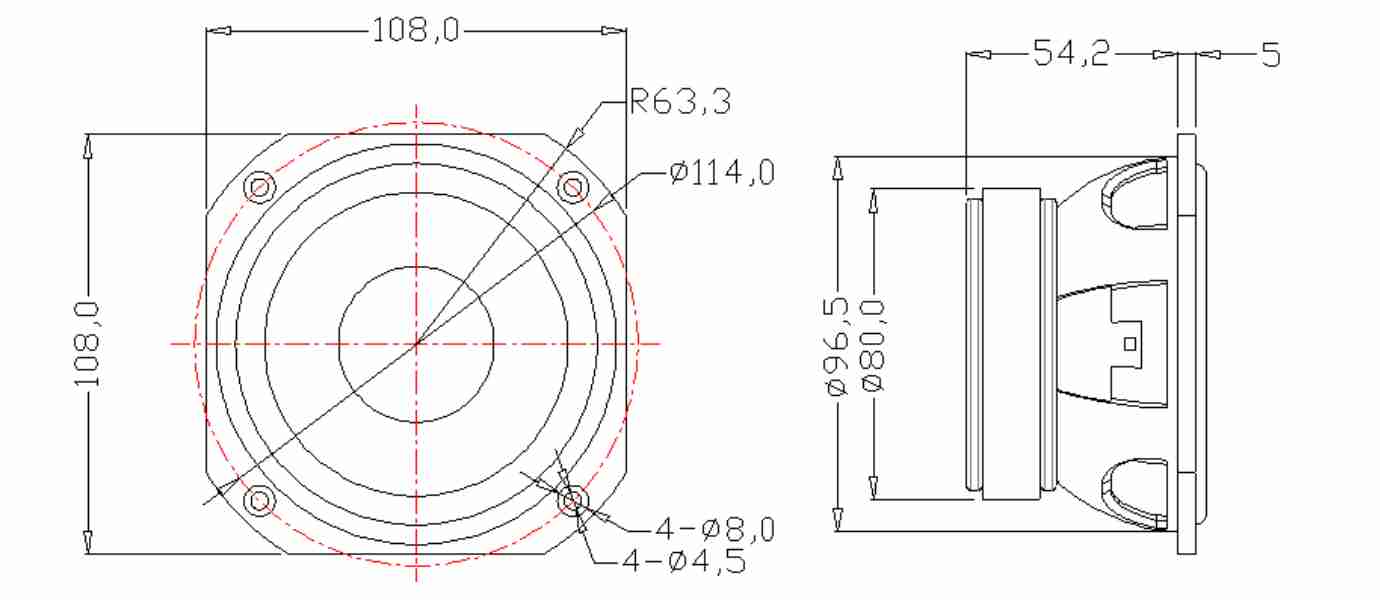

| Nominal diameter | 4 inch |
| Nominal impedance | 7Ω |
| Power rating | 15-50W |
| Sensitivity(1w\1m) | 86dB |
| Frequency range | 70Hz-10KHz |
| Voice coil diameter | Φ25 |
| Magnet dimension | 80*32*15 |
| Fs | 80.691 Hz |
| Re | 7.00 Ohm |
| Qms | 6.426 |
| Qes | 0.598 |
| Qts | 0.547 |
| Vas | 3.034 Ltr |
| Cms | 695.676u M/N |
| n.(%) | 0.258 % |
| Bl | 5.841 T |
| Sd | 5.542K mm |
