- 5寸全频喇叭
- 70铁氧体磁铁
- 25芯耐高温音圈 ASV铝骨架
- 高强度的反边铁盆架
- 橡胶悬边复合黄色玻纤鼓纸 哑光布正帽

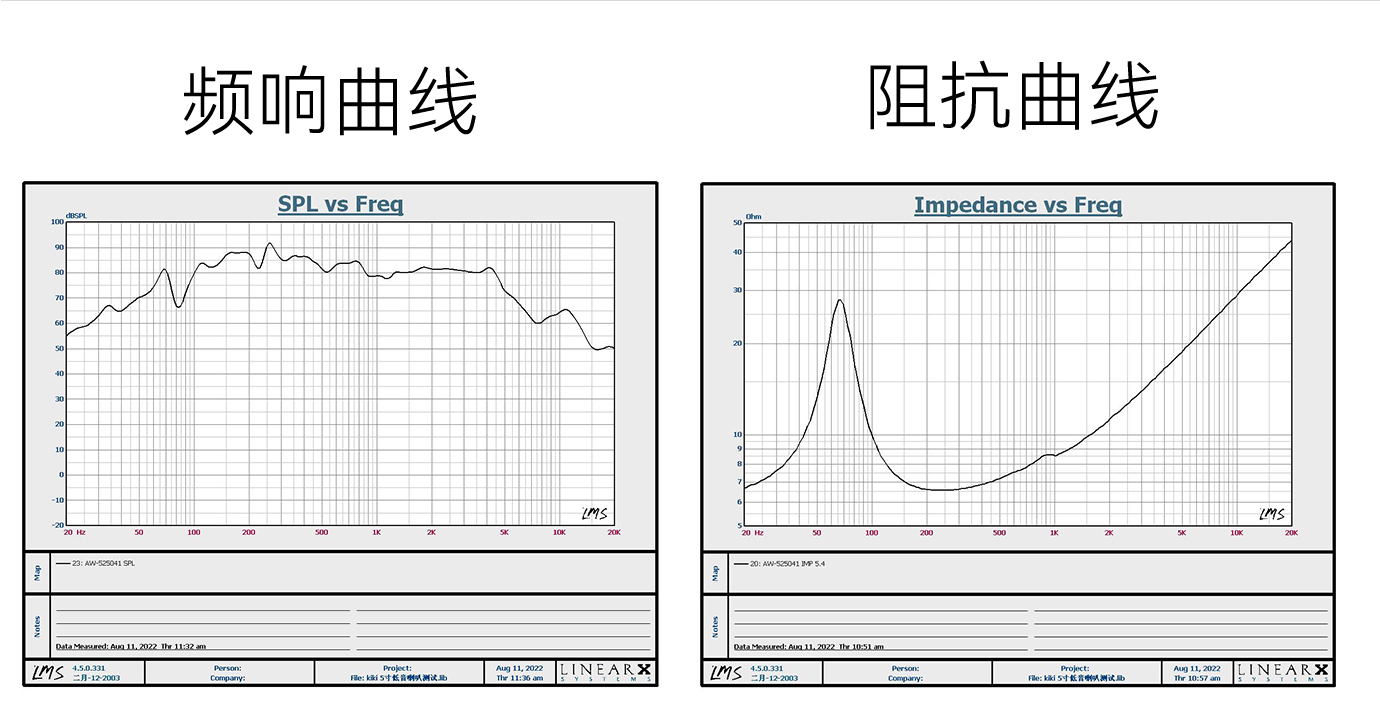

- 65Hz-4KHz 频响范围
- 88dB灵敏度
- 65W额定功率
- 适用于书架音箱、中置音箱、主音箱
喇叭扬声器
Aa1智泓 AW-425017
| Nominal diameter | 5 inch |
| Nominal impedance | 5.4Ω |
| Power rating | 10-65W |
| Sensitivity(1w\1m) | 88dB |
| Frequency range | 65Hz-4KHz |
| Voice coil diameter | Φ25 |

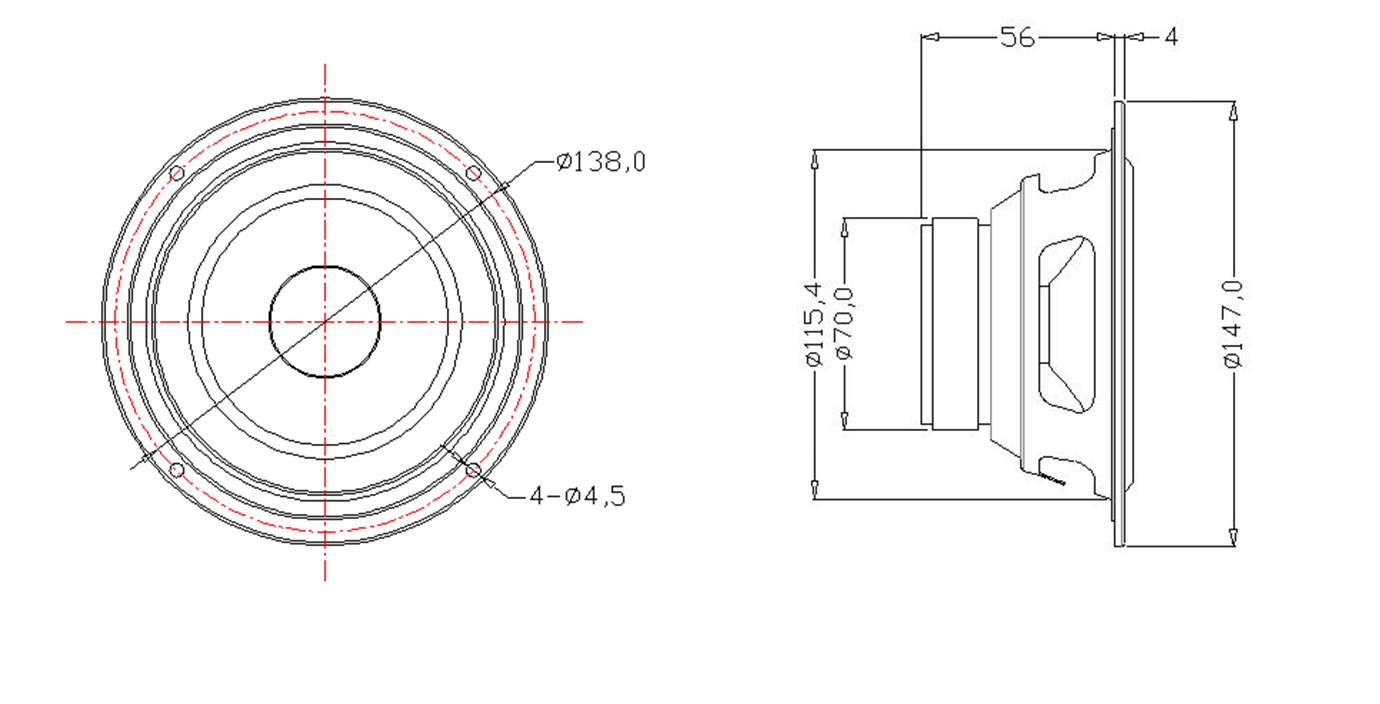

| Magnet dimension | 70*32*15 |
| Fs | 66.513 Hz |
| Re | 3.600 Ohm |
| Qms | 2.250 |
| Qes | 0.486 |
| Qts | 0.400 |
| Vas | 7.227 Ltr |
| Cms | 563.538u M/N |
| n.(%) | 0.400 % |
| Bl | 5.606 T |
| Sd | 9.503K mm |
